Samsung Ice Maker Not Working in Huntersville NC

Why did my Samsung ice maker suddenly stop making ice?

The most common reason a Samsung refrigerator ice maker stops producing ice is not a failed ice maker assembly — it is a failed ice room fan motor. This is a critical distinction because replacing the ice maker module is significantly more expensive than replacing the fan, and most homeowners and even some technicians make the wrong call without proper diagnostic testing.

‍

We recently completed a Samsung refrigerator repair in Huntersville NC after a homeowner in the Birkdale area noticed their French door Samsung had stopped making ice completely. The ice maker bin was empty, the water dispenser was still working, and the refrigerator and freezer were both maintaining temperature. No error code was showing on the display at the time of the call.

‍

This specific combination — ice maker stopped, everything else working, no obvious error — points directly toward the ice room system rather than the compressor or main cooling circuit.

‍

‍

What is the Samsung Ice Room fan, and why does it matter?

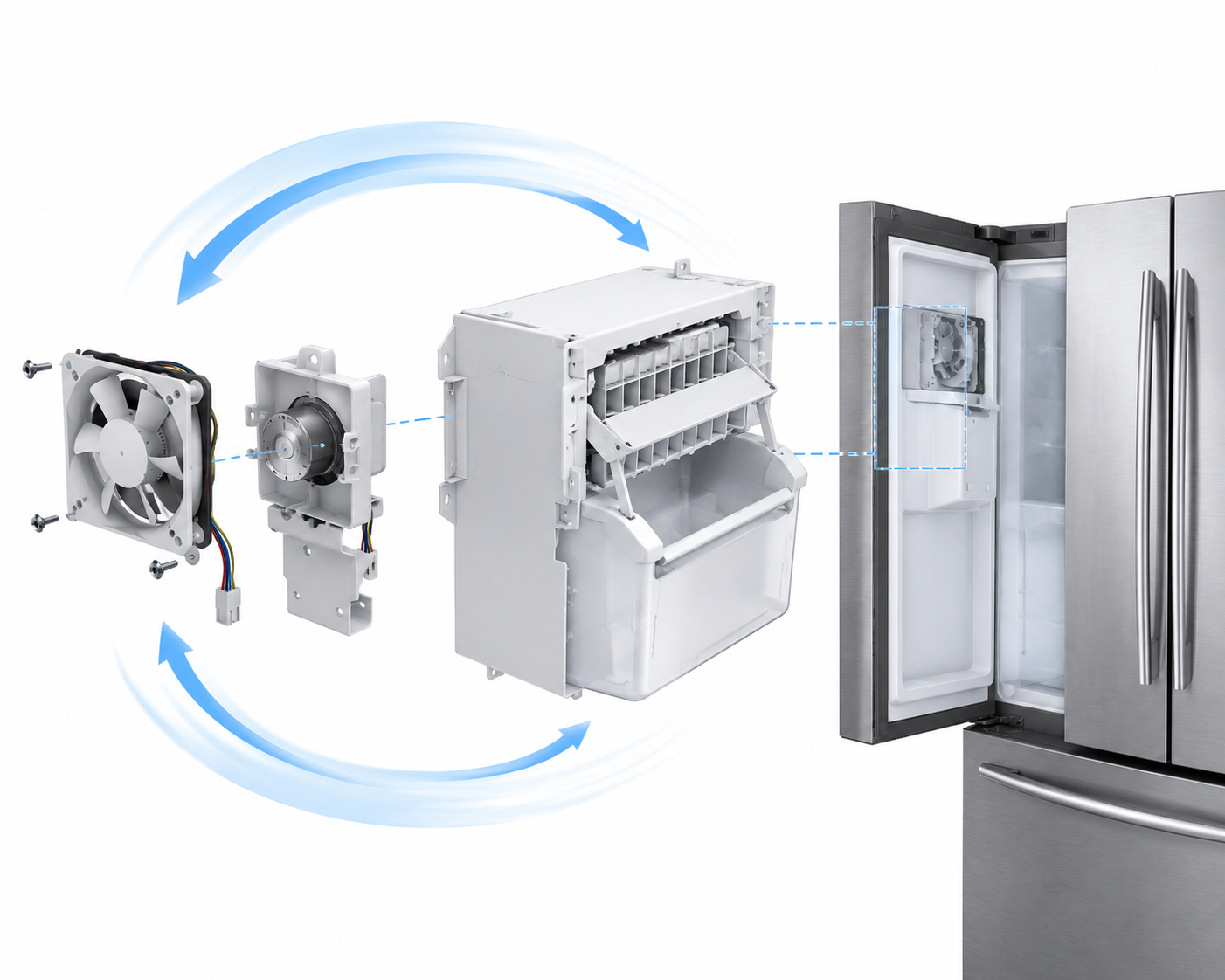

The ice room fan is a separate small fan motor located inside the ice maker compartment on Samsung French door refrigerators. Its job is to circulate cold air specifically through the ice maker housing to maintain the temperature required for ice production — typically around 0°F.

‍

Samsung ice makers require the ice room temperature to stay within a tight range to complete a full harvest cycle. If the ice room fan fails and air stops moving through that compartment, the temperature rises above the threshold and the ice maker shuts down production as a protective response. The rest of the refrigerator continues operating normally because the main evaporator fan is separate and unaffected.

‍

This is why the symptom looks so confusing — the refrigerator cools, the freezer freezes, the water dispenser works, but ice production stops completely.

‍

‍

What does the Samsung 40E error code mean?

The 40E error code on a Samsung refrigerator means the ice room fan motor has been detected as failed or is not operating within the expected RPM range. Samsung’s main PCB monitors the fan’s rotation feedback signal continuously. When that signal drops below the threshold or disappears entirely, the board stores the 40E fault and disables the ice maker circuit.

‍

In the Huntersville repair we completed, the 40E code was not showing on the display panel when the customer called — but once our technician entered Samsung’s diagnostic mode, the stored fault appeared immediately. This is one reason why checking stored Samsung error codes is always the first step in Samsung refrigerator diagnostics. The code had been stored during a previous cycle but had not been actively displaying.

‍

Other Samsung error codes related to the ice system include:

• 40E / 40C — Ice room fan motor error, fan not receiving signal or RPM feedback lost
• 8E / 8C — Ice maker sensor error, temperature sensor in the ice maker housing failed
• 14E / 14C — Refrigerator ice maker sensor error on models with dual ice makers
• 41E — Communication error between boards, can sometimes affect ice maker operation indirectly

‍

‍

Is it the ice room fan or the ice-maker assembly that failed?

This is the most important diagnostic question on any Samsung ice maker call, and the answer saves or costs the customer significant money depending on whether it gets answered correctly.

‍

The ice maker assembly on Samsung French door refrigerators is an expensive component. The ice room fan motor is a fraction of the cost. Before any part is ordered, three things need to be confirmed:

‍

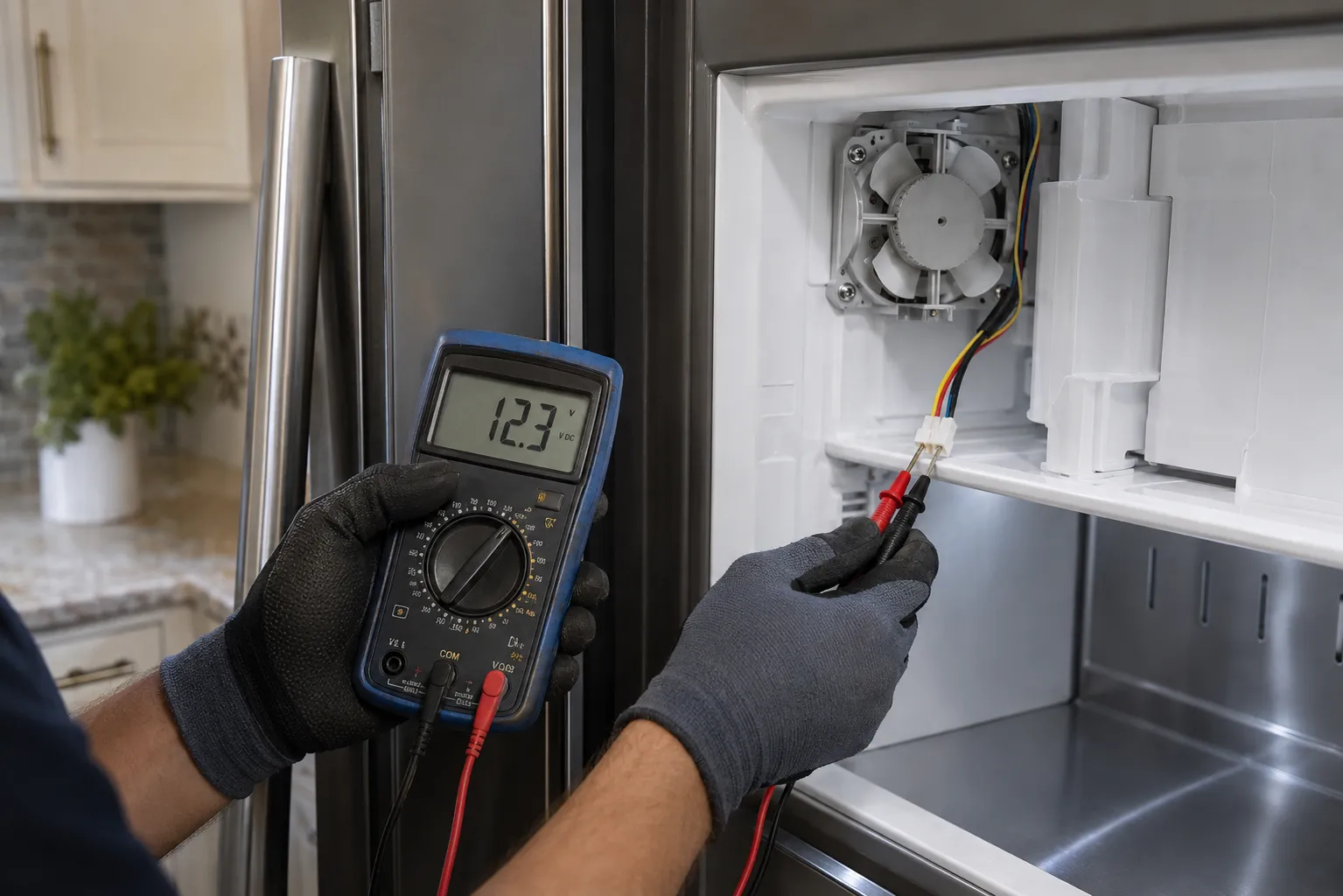

• Voltage at the fan motor — The PCB should be supplying voltage to the fan. If voltage is present and the fan is not running, the motor has failed. If voltage is absent, the PCB output or wiring needs investigation.
  ‍
• RPM feedback signal — Samsung fan motors send a Hall sensor signal back to the PCB confirming rotation. Testing this signal tells us whether the motor is spinning and communicating correctly.
  ‍
• Ice room temperature — If the fan has been stopped for an extended period, the ice room temperature may have risen and frost may have formed around the fan blade, preventing it from spinning even after the motor is replaced. This needs to be cleared before the new motor is installed.
  ‍

In the Birkdale home we serviced, voltage was present at the fan connector, the fan was not spinning, and resistance testing of the motor confirmed an open winding. The diagnosis was clear — ice room fan motor failure, not an ice maker assembly fault.

‍

How did our technician repair the Samsung ice maker in Huntersville

After confirming the 40E fault code in diagnostic mode and completing the electrical tests described above, our technician replaced the ice room fan motor with a Samsung specification part. Before installing the new motor, the ice room compartment was cleared of any frost accumulation that had built up during the period the fan was not running.
‍

After installation, the refrigerator was returned to normal operation mode and monitored through one complete ice maker harvest cycle to confirm the ice room temperature was recovering correctly and the 40E fault code had cleared from memory.
‍

The repair was completed the same day. Within a few hours the ice maker began producing ice again and the bin was filling normally. For more context on how our team handles same-day appliance repair in Huntersville, our local technicians are based nearby and stocked for the most common calls in the area.

‍

‍

Why do Samsung ice room fans fail in Huntersville homes?

Samsung ice room fan motors are relatively small motors operating in a continuously cold, humid environment. Over time, the motor bearings wear and the winding resistance changes. This is a wear item rather than a manufacturing defect — most Samsung French door refrigerators in the 5 to 8 year range are susceptible.
‍

In Huntersville specifically, homes in Birkdale, Skybrook, Hampton Oaks, and the communities along Gilead Road tend to use their refrigerators heavily — larger families, frequent entertaining, and busy households mean ice makers run more cycles per day than average. Higher cycle frequency accelerates wear on the fan motor bearings.
‍

One additional factor: Samsung refrigerators that have had ice maker issues in the past and been reset multiple times without proper diagnosis sometimes develop secondary issues around the ice room wiring harness connector. Repeated thermal cycling causes the connector pins to develop high resistance, which can cause intermittent fan operation before complete failure. We always inspect the harness connector alongside the motor on Samsung appliance repair calls in this area.

‍

When should I call for Samsung ice maker repair in Huntersville NC?

Call for service when you notice any of the following:
‍

• Ice production has slowed significantly — Fewer cubes per cycle or smaller cubes than normal is an early warning sign before complete shutdown
  ‍
• Ice maker has stopped completely — Do not wait and hope it restarts. The 40E fault means the system has already detected a failure.
  ‍
• 40E, 8E, or 14E error code is showing on the display — These codes point directly to the ice system and will not resolve without repair. See our full guide to Samsung refrigerator error codes for a complete breakdown of what each code means.
  ‍
• Ice maker is making noise but not producing ice — The harvest motor may be cycling but the ice room is too warm to freeze water properly
  ‍
• Refrigerator was recently repaired for a different issue and ice maker stopped afterward — Sometimes ice room wiring connectors are disturbed during other repairs
  ‍

If your Samsung refrigerator is also showing cooling issues beyond the ice maker, our article on Samsung refrigerator not getting cold covers the broader cooling system in detail.
