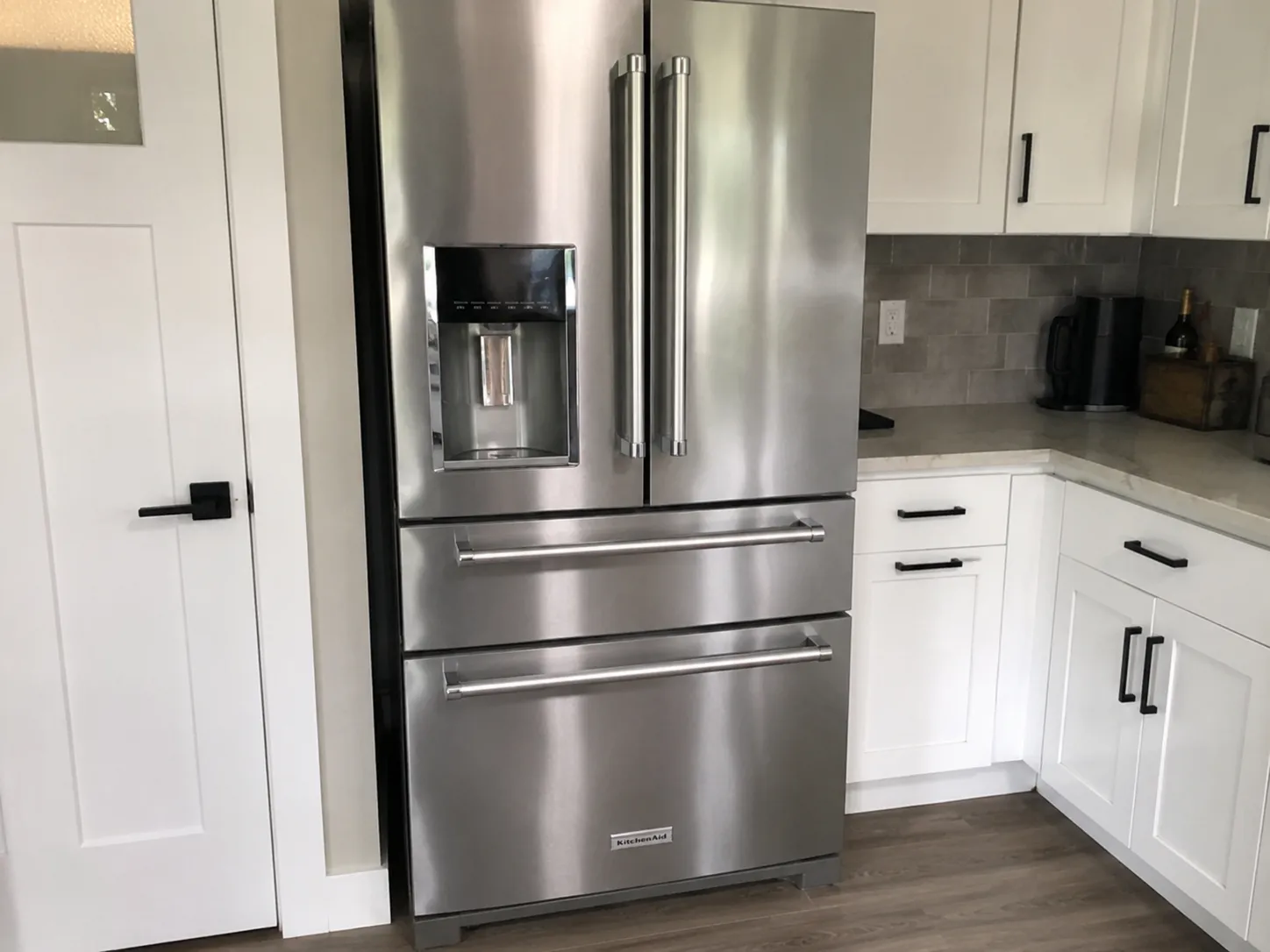

KitchenAid 5-door refrigerator stopped dispensing water and making ice
We recently diagnosed a KitchenAid 5-door refrigerator after the homeowner noticed several problems happening at the same time. The refrigerator suddenly stopped dispensing water, the ice maker quit producing ice, and the interior LED lights stopped working completely.
The deli drawer user interface also became unresponsive, making it impossible to control certain refrigerator functions.
At first, the customer assumed multiple parts had failed separately. But during diagnosis, we found that the issue connected through the refrigerator’s deli drawer communication circuit.
This type of problem is becoming more common on KitchenAid 5-door refrigerators and can affect several refrigerator functions at once.
Common customer complaints
The refrigerator showed several symptoms at the same time:
- No interior lights
- Ice maker stopped working
- Water dispenser not working
- Deli drawer controls frozen or unresponsive
- Random dispenser behavior
- Refrigerator controls acting intermittently
These symptoms often confuse homeowners because they seem unrelated at first.
What causes this KitchenAid refrigerator problem
One of the most common causes is a failure within the deli drawer communication system.
On these refrigerators, several major functions communicate through the user interface of the left deli drawer and the wiring harness. If damaged wiring, corrosion, or a shorted user interface board interrupts communication, multiple refrigerator functions can fail simultaneously.
Possible failed components include:
- Deli drawer user interface
- Deli drawer wiring harness
- Communication wiring
- Corroded connectors
- Shorted low-voltage circuits
Why multiple refrigerator functions fail together
Many homeowners are surprised when the refrigerator loses:
- water dispensing
- interior lights
- ice production
- deli drawer controls
all at the same time.
This happens because KitchenAid 5-door refrigerators rely on shared communication circuits between several control boards and components.
If the low-voltage communication system fails, multiple refrigerator systems may stop responding together even though the refrigerator still has power.
What we found during diagnosis

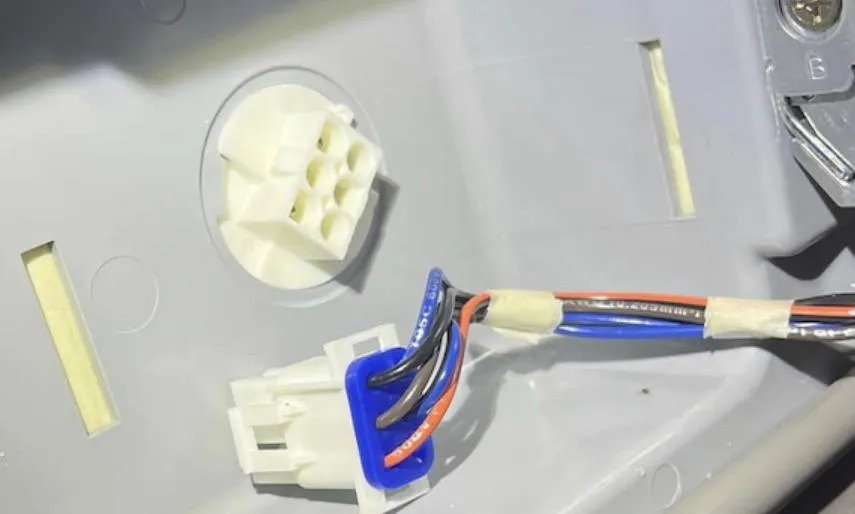

To properly diagnose the refrigerator, we accessed the left deli drawer assembly and disconnected the communication harness located behind the drawer.
Once the harness was disconnected and power restored:
- interior lights started working again
- dispenser functions returned
- refrigerator controls became responsive
This confirmed that the issue was isolated to the communication system for the deli drawer.

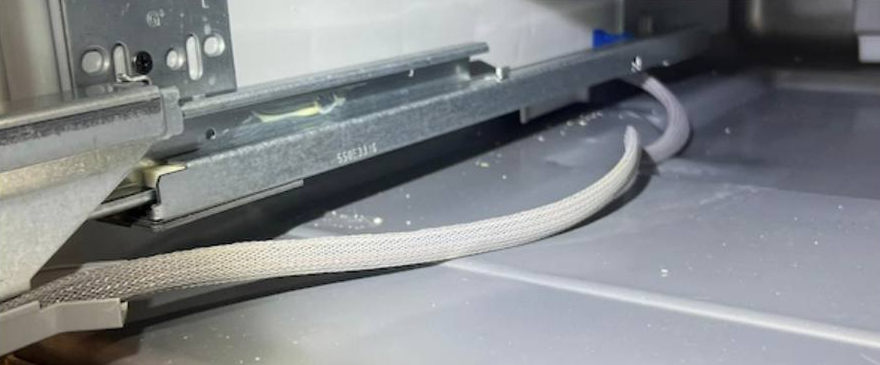

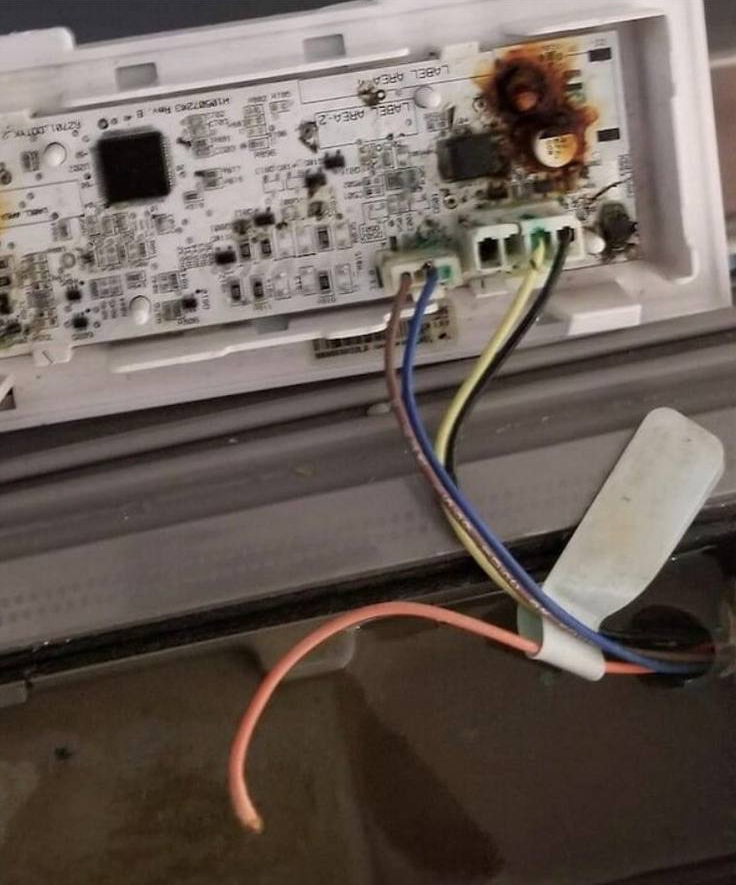

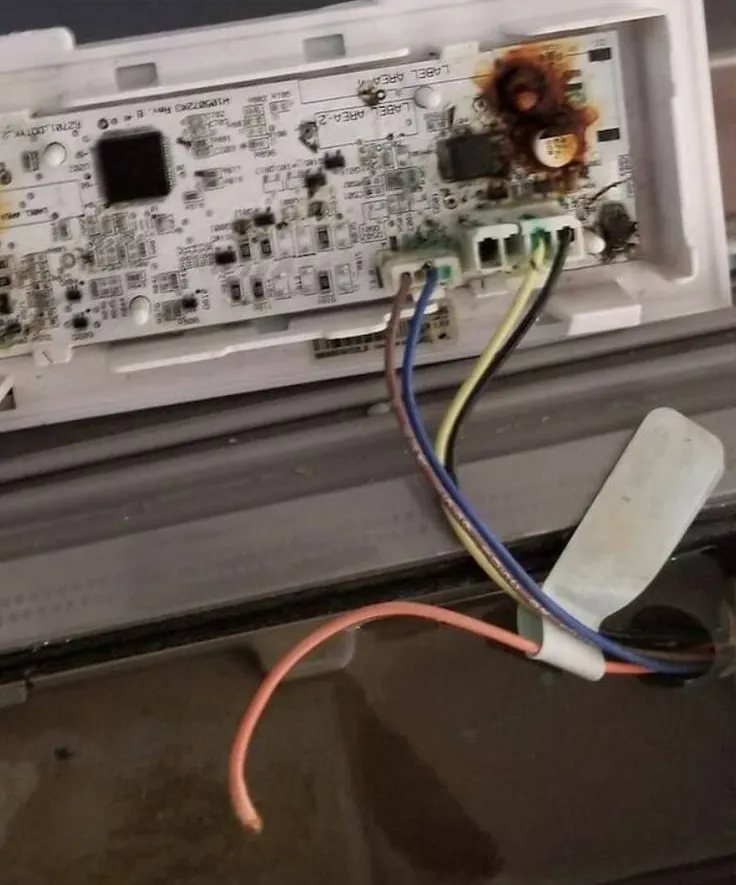

After further inspection, we found damage within the deli drawer interface circuit and signs of wiring problems inside the harness area near the left drawer rail.
These refrigerators commonly develop the following:
- pinched wires
- broken communication wiring
- moisture-related corrosion
- damaged harness insulation
- shorted connector terminals
because the drawer area experiences constant movement during daily use.

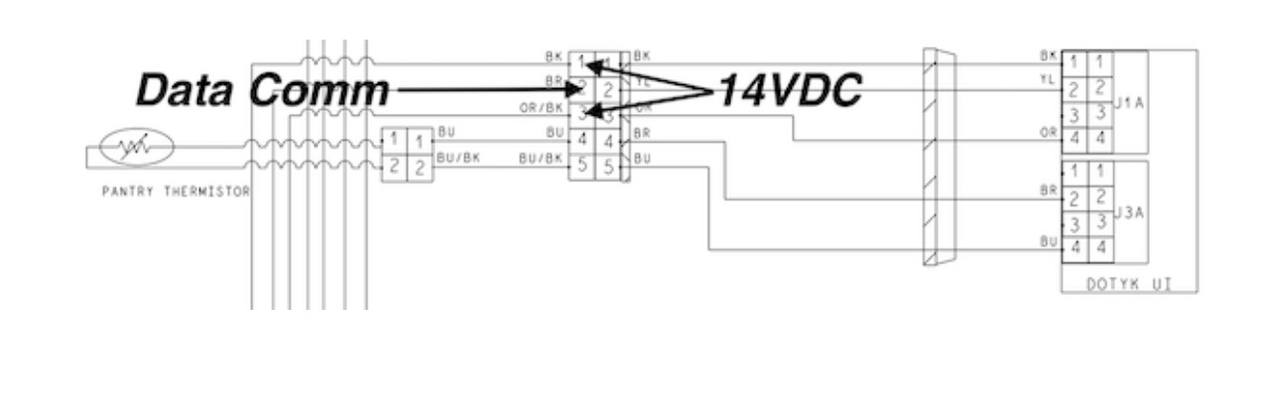

Electrical testing performed
During diagnosis, we tested the following:
- communication voltage
- wiring continuity
- low-voltage data circuits
- harness connections
Testing showed unstable communication voltage caused by damaged wiring and a failing deli drawer interface circuit.
This prevented proper communication between refrigerator components and caused several refrigerator systems to stop functioning correctly.
Signs your KitchenAid refrigerator may have this issue
You may be experiencing the same problem if your refrigerator has:
- no interior lights
- no water dispensing
- ice maker not working
- deli drawer controls frozen
- random dispenser activity
- multiple refrigerator functions failing together
These symptoms often point toward communication or harness failures rather than separate failed components.
Professional KitchenAid refrigerator repair
Modern KitchenAid refrigerators now contain multiple control boards, communication circuits, and electronic systems. While these features improve convenience and temperature control, they also create more complex failure points.
Our appliance repair technicians regularly diagnose KitchenAid refrigerator problems, including:
- dispenser failures
- ice maker issues
- communication system faults
- control board failures
- deli drawer wiring problems
- refrigerator lighting issues
If your KitchenAid 5-door refrigerator suddenly lost multiple functions at the same time, professional diagnosis can help identify the actual source of the problem quickly and avoid unnecessary part replacement.
Contact us today for expert repair services for your KitchenAid refrigerator.
